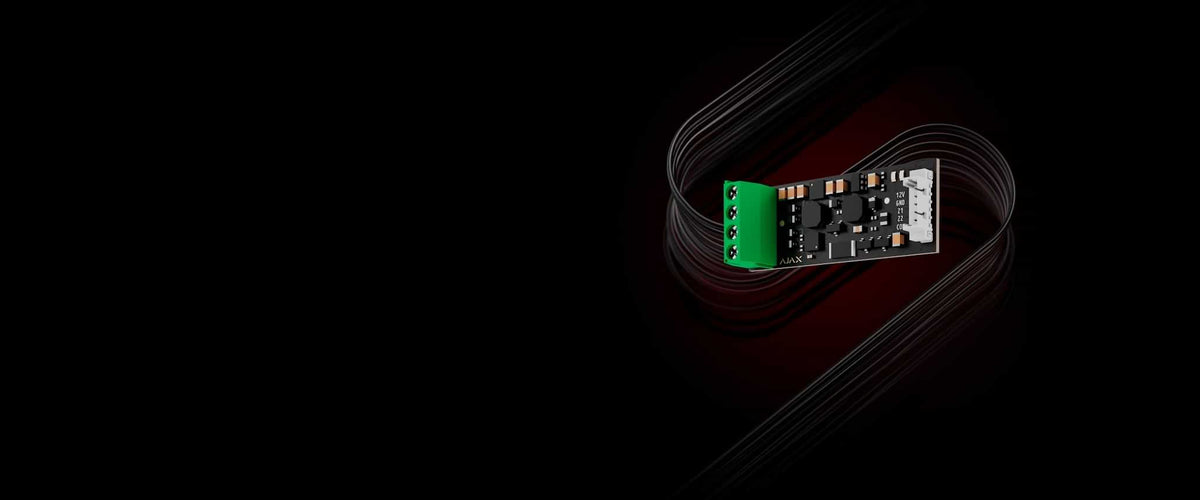

Ajax Transmitter Fibra Input Expander

Superior Transmitter Fibra connects a single third-party wired detector to an Ajax system over the Fibra bus. It is how you keep a specialised sensor the Ajax range does not cover, or a working legacy device, reporting alongside everything else in the system.

The module has two inputs, Z1 and Z2, supports NO, NC, EOL, 2EOL and 3EOL connection types, and handles pulse and bistable devices with a selectable NO/NC state. It supplies 12 V at 50 mA to the connected detector, is configured remotely, and communicates over Fibra at up to 2,000 m from the hub or a Fibra line extender.

Key features

• Integrates one third-party wired detector into an Ajax system
• Two inputs (Z1 and Z2) supporting NO, NC, EOL, 2EOL and 3EOL connection types
• 12 V, 50 mA power output for the connected detector
• Works with pulse and bistable devices, with selectable NO/NC state
• Remote configuration and control, with regular state reporting to the hub
• Ten event types including intrusion, panic, fire, gas, leakage and roller shutter alarms
• Block encryption with dynamic key over the Fibra protocol

Specifications

• Product type: Wired integration module
• Communication protocol: Fibra
• Communication range: Up to 2,000 m with an Ajax hub or Fibra line extender
• Inputs: Two (Z1 and Z2)
• Connection types: NO, NC, EOL, 2EOL, 3EOL
• Power supply output: 12 V, 50 mA
• Power supply input range: 10.5-15 V
• Cable type: U/UTP cat.5, 4 × 2 × 0.51
• Connection method: Accessory 5-pin cable
• Encryption: Block encryption with dynamic key
