Hikvision PTZ Cameras

Hikvision PTZ cameras pan, tilt and optically zoom under software or operator control — the right camera for wide-area perimeters and industrial sites where a fixed camera can't cover the zone, or where active follow-the-target tracking matters. Optical zoom ratios run 4× through 32×, letting a single PTZ replace several fixed cameras for general coverage while retaining the ability to zoom into identification detail when something happens. Current Hikvision PTZ Pro Series cameras integrate AcuSense AI human/vehicle classification with auto-tracking — once a person or vehicle enters the field of view, the camera tracks them automatically, keeping them in frame without operator intervention. ColorVu variants add full-colour night vision; rugged outdoor variants reach IP66 or IP67 with -40 °C to +65 °C operating range for industrial and infrastructure installs.

Security Cameras Australia stocks the Hikvision PTZ range across 4MP, 6MP and 8MP / 4K resolutions with AcuSense and ColorVu variants. Every camera is genuine Australian Hikvision stock with full manufacturer warranty.

For the broader Hikvision range see the Hikvision parent collection. For all-brand PTZ options see PTZ security cameras.

View as

When a PTZ earns its keep

  • Wide-area perimeter coverage. Industrial yards, carparks, dealerships, large rural properties — zones too big for a single fixed camera. A PTZ at the central position covers the whole area on auto-patrol, with manual control or auto-tracking when something happens.
  • Active monitoring of identified threats. A site where a guard or remote operator actively monitors events benefits from zoom-in capability for plate reading, facial detail, or following a target through the scene.
  • Auto-tracking with AcuSense. Hikvision PTZs with AcuSense automatically track humans or vehicles once they enter the field of view — useful for unattended monitoring where the camera follows the target without operator input.
  • Cost reduction vs multiple fixed cameras. A single PTZ at the right position covers an area that would otherwise need 4-6 fixed cameras. For zones with no high-detail identification requirement at any specific point (just general coverage), one PTZ saves cabling and licensing cost.

When a PTZ is the wrong choice

  • Single fixed identification position. If you need reliable identification at a specific point (a front door, a checkout, a turnstile), a fixed camera trained on that position is better — it's always pointed at the target, no movement, no zoom adjustment.
  • High-event-rate environments. A PTZ on auto-patrol can miss an event that happens off-axis. For environments where every event matters at every position, multiple fixed cameras with overlapping coverage beat a single PTZ.
  • Budget-constrained installs. PTZs cost significantly more per camera than fixed equivalents. The cost calculation only favours PTZ when the alternative is 4+ fixed cameras at the same position.

How to choose between Hikvision PTZ models

Four axes:

1. Optical zoom range. 4× for general coverage of nearby zones; 12× for mid-range perimeter; 25–32× for long-range industrial perimeter, plate-readable distance work, and identification at significant distance. Optical zoom (not digital) is the meaningful spec — digital zoom just crops the image.

2. Resolution. 4MP for general; 6MP for higher detail at moderate zoom; 8MP / 4K for long-range identification where the wide-angle shot needs to retain detail. Higher resolution + higher zoom = more usable detail at distance.

3. AcuSense auto-tracking. AcuSense-rated PTZs automatically track humans and vehicles. Worth it for unattended monitoring positions; less critical where a live operator handles tracking manually.

4. ColorVu and night spec. ColorVu PTZs hold colour at night via supplementary white light — useful for descriptive identification. Long-range PTZs typically have IR illumination at 100–500 m range; confirm IR range against the install's typical target distance.

Install considerations

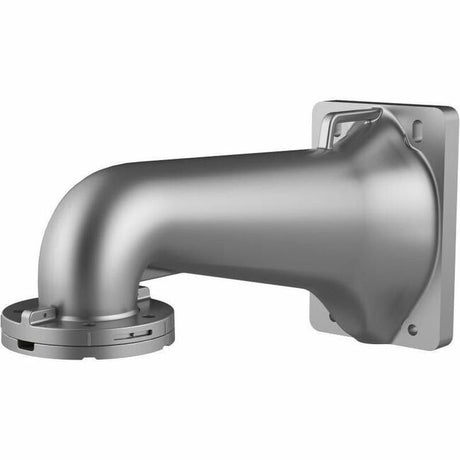

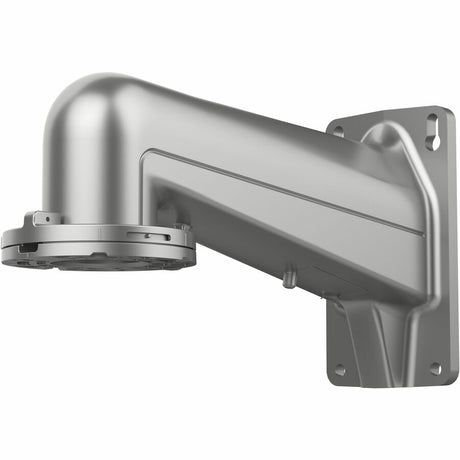

  • Mount stability. A PTZ at zoom is hyper-sensitive to vibration — a pole that flexes 2 mm at the top translates to several pixels of image jitter at 25× zoom. Mount on solid concrete walls, structural steel, or rigid masonry; avoid metal poles unless properly braced.
  • PoE+ or 24 V AC power. PTZs draw more than fixed cameras — typically PoE+ (802.3at, 30 W) or 24 V AC. Confirm the NVR or PoE switch supplies the right power class; some long-range outdoor PTZs need PoE++ (802.3bt, 60 W) or dedicated 24 V AC supply.
  • Cable distance. 100 m Cat6 Ethernet limit applies to PTZ as any other IP camera; for runs longer than 100 m use a media converter to fibre or a PoE extender.
  • Preset positions and patrol. Most installs benefit from defining 4-10 preset positions that the PTZ auto-cycles through, with auto-tracking taking over when AcuSense detects a target. Save the install time by spending an hour on the preset and patrol configuration after mounting.

Why buy from Security Cameras Australia

  • Authorised Hikvision dealer · full 36-month manufacturer warranty.
  • Expert support · advice on PTZ vs multiple fixed cameras, mount selection, AcuSense auto-tracking configuration, preset and patrol setup.
  • Price-match · free shipping · 30-day returns.

Shop the Hikvision PTZ range

Browse below, or see all PTZ cameras across brands, or the Hikvision parent collection for fixed cameras.

Frequently Asked Questions about Hikvision PTZ Cameras

Can one PTZ replace four fixed cameras?

For wide-area general coverage, often yes — a PTZ on auto-patrol covers a zone that would otherwise need multiple fixed cameras. The trade-off: a PTZ only points one direction at a time, so events at unscanned positions can be missed. For high-event-rate environments where every event matters at every position, multiple fixed cameras with overlapping coverage beat a single PTZ. For general perimeter where events are sporadic and a 30-second patrol cycle catches them, a PTZ saves cost.

Does AcuSense auto-tracking work on Hikvision PTZ?

Yes — AcuSense-rated PTZs combine on-camera AI human/vehicle classification with auto-tracking. Once a person or vehicle enters the field of view, the camera tracks them automatically, keeping them in frame as they move through the scene. Useful for unattended monitoring — overnight perimeter, after-hours commercial — where the camera follows the target without operator input. Configurable: which target types to track, tracking duration, return-to-preset behaviour after target leaves.

What zoom range do I need?

Depends on target distance and the level of detail needed. 4× zoom for general coverage of nearby zones (10-30 m). 12× for mid-range perimeter (50-150 m) with face identification at the close end. 25-32× for long-range industrial perimeter (200+ m), plate-readable identification at distance, or where a single PTZ covers a very large area. Optical zoom (not digital) is what matters — digital zoom is just cropping.

Can I control a Hikvision PTZ remotely from a phone?

Yes — the Hik-Connect mobile app supports PTZ control: pan, tilt, zoom, preset selection, and live view. Useful for property owners wanting to investigate an alert remotely. For multi-operator commercial monitoring, the NVR client software (iVMS-4200 or HikCentral) provides full PTZ control with joystick support.

Do I need PoE+ for a PTZ, or will standard PoE work?

Most Hikvision PTZs require PoE+ (802.3at, 30 W) rather than standard PoE (802.3af, 15.4 W). Longer-range outdoor PTZs with high-power IR illumination may need PoE++ (802.3bt, 60 W) or 24 V AC. Confirm the camera's power class against the NVR's built-in PoE rating or your separate PoE switch's port rating. Underpowered PTZs may boot but fail to move under load.
