16 Camera Security Systems

A 16-camera CCTV kit is built for large homes and estates, multi-building sites, mid-size commercial premises (warehouses, dealerships, multi-zone retail and hospitality), and properties with long perimeters that need continuous, gap-free coverage. The kits in this collection vary across five axes: resolution (6MP up to 8MP 4K), camera technology (standard, AcuSense AI, ColorVu full-colour night vision, or Strobe & Siren active deterrence), camera form factor (turret, bullet, dome, PTZ or a mixed set), extras (HDD pre-installed or BYO, with or without a UPS), and price tier.

Every 16-camera kit ships with a 16-channel PoE NVR, so all 16 cameras run from a single recorder over one Cat6 cable each. Larger HDDs are recommended at this scale — a 16-camera system writes a lot of footage, so size the drive to your retention need (we can advise). Every kit is genuine Australian stock with full manufacturer warranty, backed by pre-sale technical advice from people who configure these systems for a living. Price-match guarantee, free shipping Australia-wide, and 30-day returns.

Sixteen cameras is a system, not just a kit — getting the channel count, HDD size and camera mix right up front saves real money later. Tell us the property and what you actually need to see and we’ll specify the right configuration. If your site is larger again, see the NVR range for 32-channel and above, or talk to us about a custom build.

Key features of a 16-camera system

16-channel PoE NVR — all 16 cameras run from one recorder, each on a single Cat6 cable carrying power and data.
6MP to 8MP 4K resolution — match the resolution to the viewing distances across the site; 4K for long perimeters and plate-readable work.
AcuSense AI — on-camera human and vehicle filtering, which matters most at this scale because 16 standard cameras would otherwise flood you with false alerts.
ColorVu full-colour night vision on supported cameras — identification detail after dark at front-of-house and key positions.
Active deterrence options — strobe and siren on detection for high-risk zones like yards and loading docks.
Mixed form factors — turret, bullet, dome and PTZ across positions, so each view gets the right camera.
Records locally, no subscription — footage stays on the NVR, you own it, no monthly fee.

What's in a 16-camera system

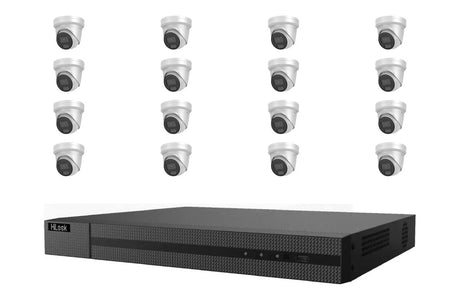

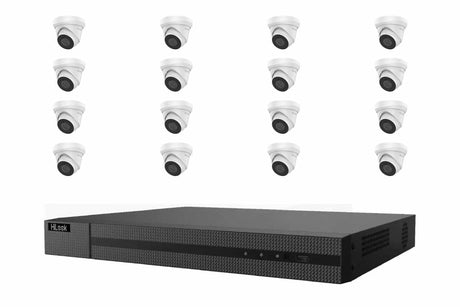

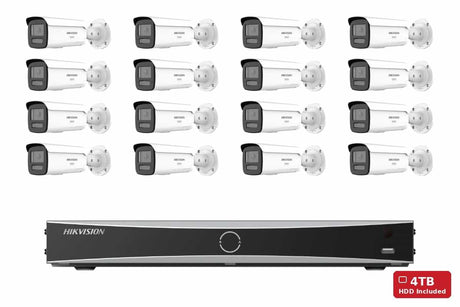

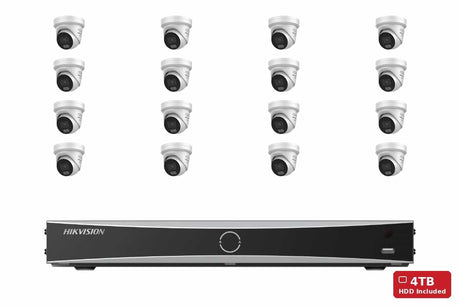

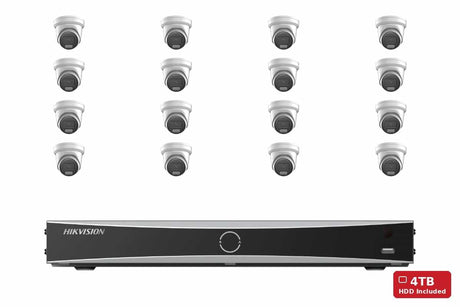

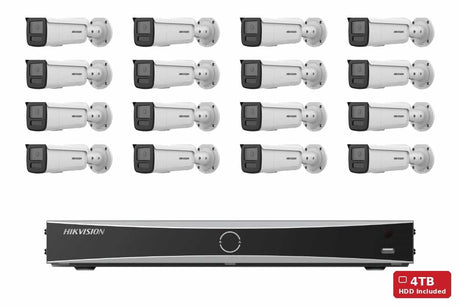

Sixteen cameras in your chosen resolution, feature set and form-factor mix.
16-channel PoE NVR with built-in ports for all cameras.
Surveillance-grade hard drive pre-installed on HDD-included kits, or supply your own on BYO kits.
Mounting hardware per camera and a quick-start guide.
Not included: Cat6 cable to each camera, a monitor, your internet router.

How to choose your 16-camera system

Resolution. 6MP covers most positions; step to 8MP / 4K on long perimeters and approaches where you need detail at distance. 4K roughly doubles storage, so size the drive to match.

Features. AcuSense on every outdoor position to keep alerts usable; ColorVu at front-of-house and identification points; active deterrence on the one or two high-risk zones. See the AcuSense, ColorVu and active deterrence kits.

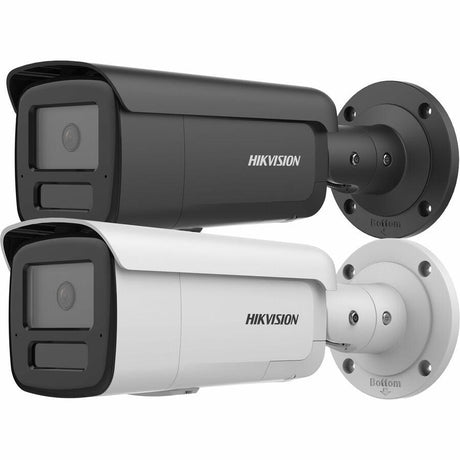

Form factor. Turret for general perimeter, bullet for long runs, dome for discreet or vandal-prone spots, PTZ for active wide-area coverage. See the turret, bullet, dome and PTZ kits.

Storage and power. 16 TB is a sensible minimum at this scale, more for 4K or 30-day retention. On sites where a footage gap isn't acceptable, add backup power — see kits with backup power.

Is 16 cameras the right number?

Sixteen suits large homes and estates, multi-building sites, mid-size commercial premises and long perimeters needing continuous coverage. If it's more than the site needs, step down to a 10-camera system. For larger again — 32-channel and beyond, or multi-site — see the NVR range or talk to us about a custom build specified against a floor plan.

Install

Each camera runs on a single Cat6 cable from the NVR (PoE) — the cabling is the real work, and at 16 cameras across a large or multi-building site it's substantial. Most installs at this scale are a job for a licensed installer; we can refer one, or advise on the cabling approach if you're going DIY.

Why buy from Security Cameras Australia

Authorised Australian dealer · genuine stock with full manufacturer warranty, not grey import.
Expert support · pre- and post-sale advice from people who configure these systems for a living, plus installer referrals.
Price-match · free shipping · 30-day returns.

Browse the kit range another way

By camera count: 4, 6, 8, 10. By feature: AcuSense, ColorVu, active deterrence, Pro Series. By camera type: turret, bullet, dome, PTZ, panoramic. See all in Security Camera Systems.

Frequently Asked Questions about 16 Camera Security Systems

What's included in a 16-camera kit?

Sixteen cameras, one 16-channel PoE NVR, mounting hardware for each camera and a quick-start guide. Some kits include a pre-installed HDD (often 6 TB); BYO-HDD kits ship without the drive so you can size it to your retention. Some kits bundle a UPS. Cat6 ethernet cable, a monitor for local viewing and your internet router are not included.

What HDD size do I need on a 16-camera system?

16 TB is a sensible practical minimum on 16 cameras for meaningful retention; for 30-day retention or any 4K kit, step up further. Surveillance-grade drives only — Seagate SkyHawk AI or WD Purple. Desktop drives don't survive the 24/7 write cycle.

How hard is a 16-camera kit to install?

PoE means a single Cat6 cable per camera from the NVR — no separate power at the camera. At 16 cameras the cabling is the real work and most sites are multi-building or multi-storey, so this is typically a job for a licensed installer. We can refer one or advise on the cabling approach if you're going DIY.

What if 16 cameras isn't quite the right number?

Step down to a 10-camera kit if 16 is more than the site needs. Step up to 32-channel and above for large commercial or multi-site deployments — see the NVR range or talk to us for a custom build specified against a floor plan.

Do these systems record without a subscription, and can I view all 16 cameras remotely?

Yes. All 16 cameras record to the hard drive in the NVR on your premises — no cloud fee, no monthly subscription, and you own the footage. You can view live and recorded footage from all cameras on your phone or computer through the free Hik-Connect app; you only need an internet connection at the NVR. On larger sites, viewing across multiple NVRs is handled the same way under one account.
