Ajax Superior SeismoProtect G3 Fibra Seismic Sensor — Black

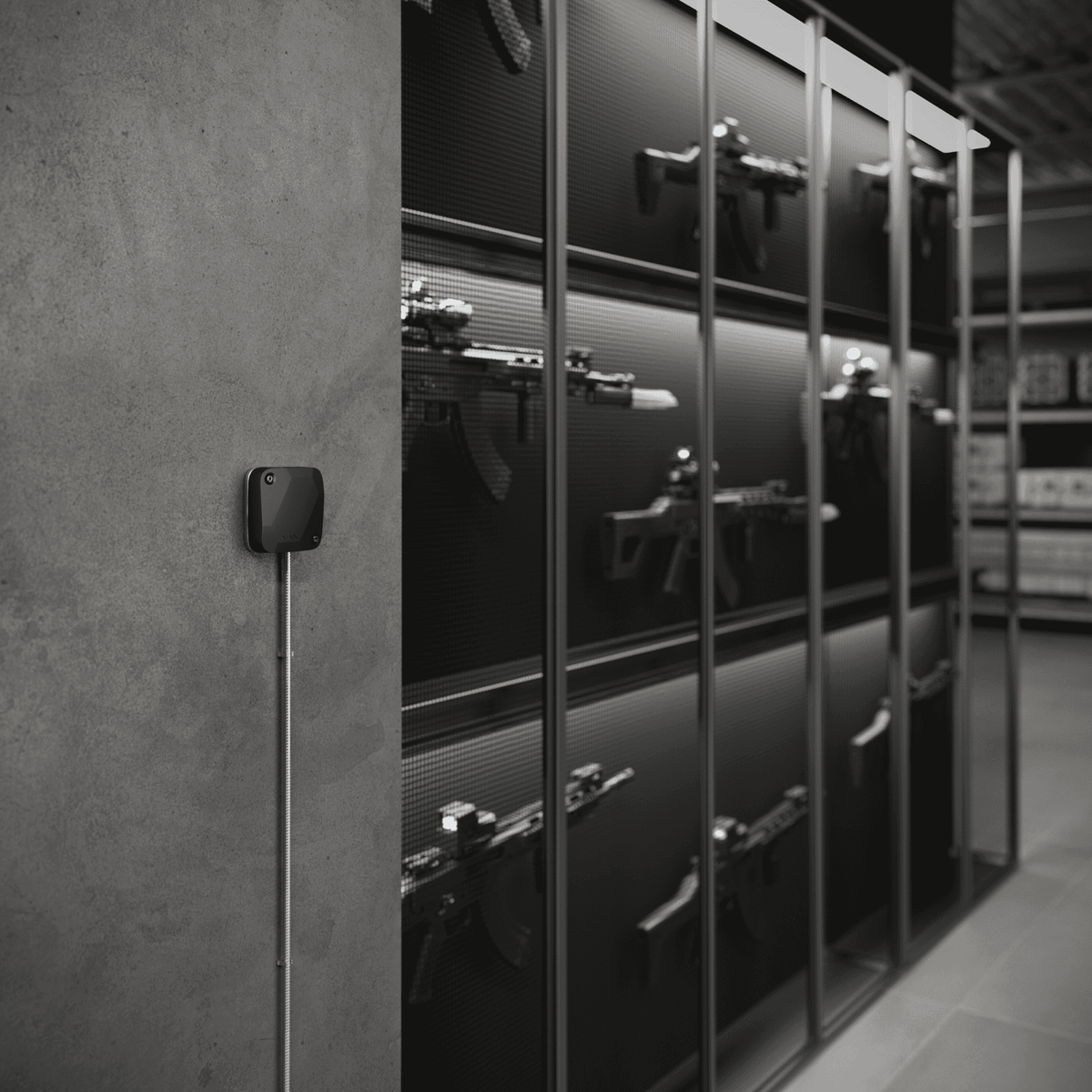

Superior SeismoProtect G3 Fibra protects safes, strongrooms and vault walls by detecting the attack itself rather than the intruder. It picks up the vibration of drilling, cutting or an explosion, and a separate shock sensor reacts to physical force such as bending, pushing or tilting. The black matte enclosure mounts flat against the protected surface.

A piezoelectric sensor, accelerometer and digital temperature sensor work together, so a thermal attack that raises the temperature near the enclosure is caught alongside mechanical ones. An analysis algorithm filters the vibrations it sees to keep false alarms down, and the detector self-tests the piezoelectric sensor daily. It reports over the Fibra bus at ranges to 2,000 m and delivers Grade 3 protection.

Key features

• Seismic and Shock operating modes in one detector
• Detection radius up to 4 m on concrete and 2 m on steel
• Piezoelectric sensor, accelerometer and digital temperature sensor
• Automatic daily self-test of the piezoelectric sensor
• Two tamper buttons for detaching and disassembling
• Stainless steel mounting plate and built-in spirit level
• 1.5 m armoured 4-core signal cable and fasteners included

Specifications

• Detector type: Wired seismic detector with shock sensor
• Detection radius (concrete): Up to 4 m
• Detection radius (steel): Up to 2 m
• Operating modes: Seismic and Shock
• Communication protocol: Fibra (wired bus)
• Communication range: Up to 2,000 m
• Power consumption: Up to 0.29 W
• Security grade: Grade 3
• Tamper protection: 2 tamper buttons
• Included: Stainless steel plate, 1.5 m armoured cable, fasteners
