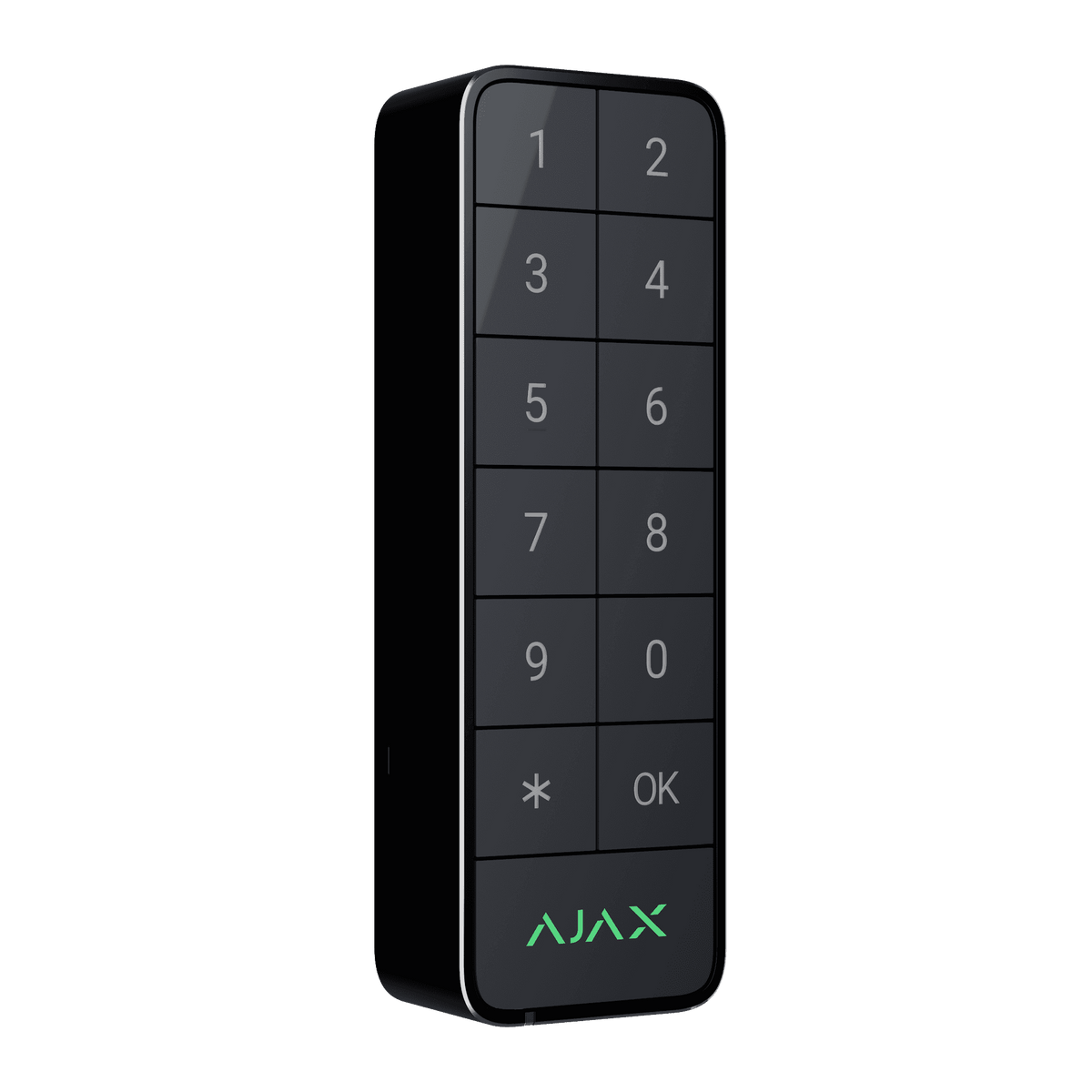

Ajax Superior KeyPad Outdoor Fibra — Graphite

Ajax Superior KeyPad Outdoor Fibra is a wired keypad for arming and disarming at the door, inside or out. Users can present a Pass or Tag, use a smartphone over Bluetooth, or enter a code, so a site can mix credentials without mixing hardware. This is the graphite finish.

It runs on the Fibra bus, drawing under 0.6 W and reaching up to about 2,000 m of cable, which keeps large sites on one wired system. The enclosure is IP66 and IK08 rated and holds full function after impact, and the mechanical buttons are big enough for gloves with backlit digits that do not fade. Two tamper buttons and a SmartBracket panel with a removable terminal board make installation and servicing straightforward.

Key features

• Authentication by Pass card, Tag key fob, smartphone over BLE, or passcode
• Keypad, personal, unregistered user and duress (RRU) code types, with up to 99 unregistered user codes
• Night Mode, group control and scenario activation from the keypad
• IP66 and IK08 rated enclosure that keeps working after impact
• Glove-friendly mechanical buttons with non-fading backlit digits
• DESFire and BLE reader; one Tag or Pass can control up to 13 security systems
• Fibra bus wiring up to about 2,000 m, with two tamper buttons and a SmartBracket mounting panel

Specifications

• Communication protocol: Fibra wired bus
• Cable run: Up to 6,550 ft (about 2,000 m) on U/UTP cat.5 twisted pair
• Power consumption: Up to 0.6 W
• Ingress protection: IP66
• Impact protection: IK08
• Operating temperature: -25 °C to +60 °C (-13 °F to 140 °F)
• Authentication methods: Pass cards, Tag key fobs, smartphones (BLE), passcodes
• Reader type: DESFire and BLE
• Buzzer output: 60 dB
• Mounting: SmartBracket panel with removable terminal board
