20763.78.NC
Ajax Power Supply
Ajax Power Supply is backordered and will ship as soon as it is back in stock.

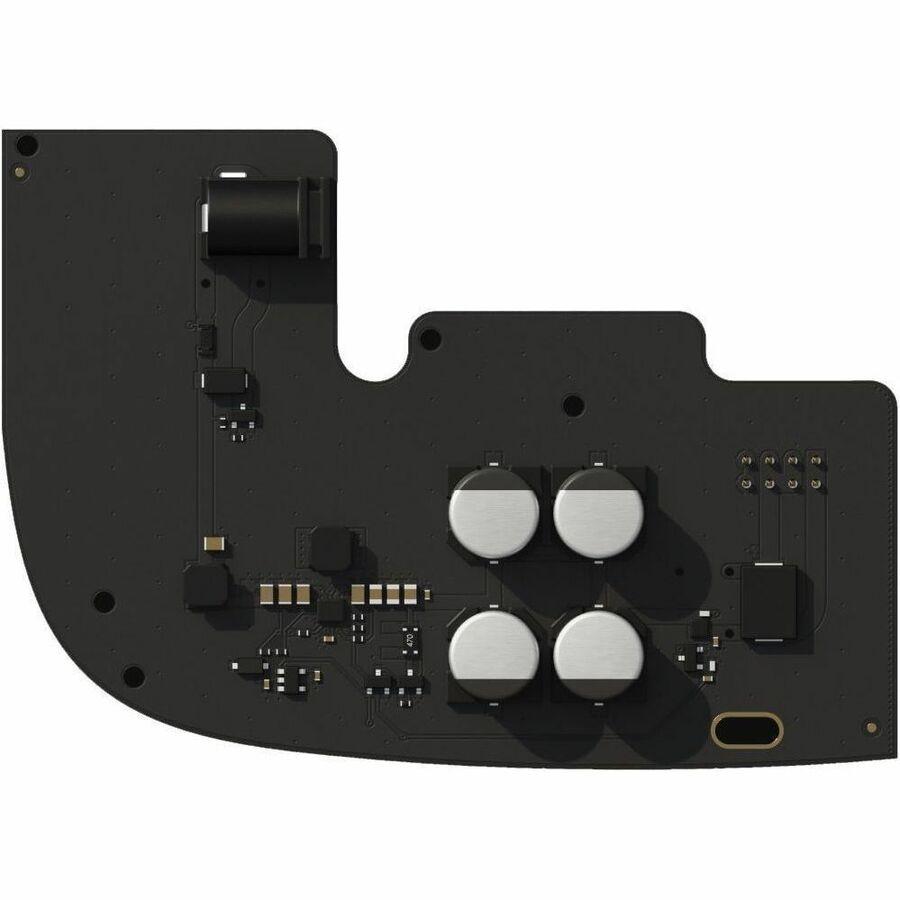

This 12 V power supply unit lets an Ajax Hub, Hub Plus or ReX range extender run from a low-voltage source instead of mains. It is the answer for sites without reliable power, and for installs where the panel has to sit on a battery.
The unit replaces the pre-installed 110/230 V supply inside the device housing and connects through a standard power jack, with a terminal adapter bundled for bare-wire connections. Draw is modest — a ReX takes 20 mA — so a car or portable battery will keep a system running, which also makes it practical for mobile installations such as caravans and site offices.
Key features
- Runs Hub, Hub Plus or ReX from a 12 V low-voltage source
- Fits inside the device housing in place of the standard 110/230 V supply
- Standard power jack socket with a bundled terminal adapter
- ReX consumption of 20 mA, so a portable or vehicle battery is enough
- Rated service life of up to 10 years
Specifications
- Compatibility: Ajax Hub, Hub Plus, ReX
- Input: 12 V low voltage
- ReX power consumption: 20 mA
- Connection type: Standard power jack socket with bundled terminal adapter
- Installation: Replaces the pre-installed 110/230 V power supply inside the device housing
- Operating temperature: -10 °C to +40 °C
- Operating humidity: Maximum 75%
- Service life: Up to 10 years
-
