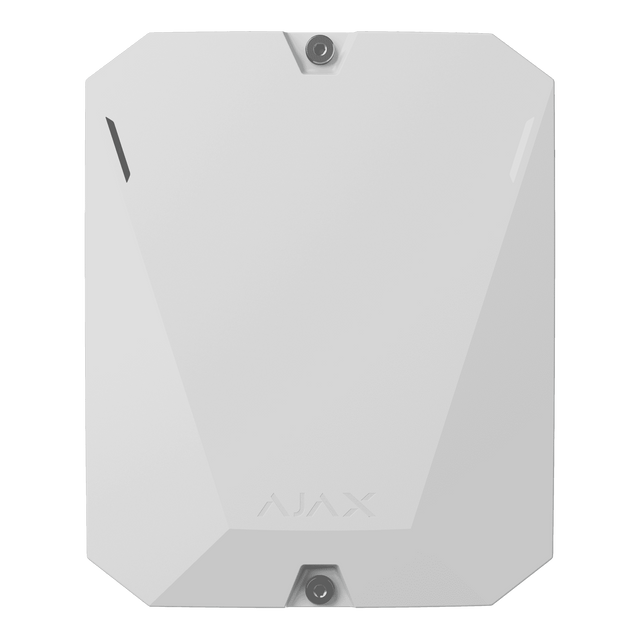

Ajax MultiTransmitter Input Expander — White

MultiTransmitter brings an existing wired alarm into an Ajax system without pulling the old detectors out. It takes up to 18 third-party wired devices and reports each one to the hub as its own zone. This is the practical upgrade path for a site with serviceable wiring but a panel past its useful life.

Each zone can be configured as NO, NC, EOL, 2EOL or 3EOL, and three separate power lines feed connected fire and intrusion detectors at 12 V DC up to 1 A per zone. Wired runs reach 400 m and the Jeweller link back to the hub reaches 2,000 m in open ground with AES-encrypted TDMA traffic. Mains powered at 100–240 V AC, it accepts a 12 V DC backup battery for up to four days of standby. The white enclosure carries two tampers covering removal and opening.

Key features

• Integrates up to 18 third-party wired devices into an Ajax system
• Zone types: NO, NC, EOL, 2EOL and 3EOL
• Three power lines for connected fire and intrusion detectors
• Wired runs up to 400 m; radio link up to 2,000 m
• AES-encrypted Jeweller TDMA communication
• Two tampers detecting removal and enclosure opening
• Coverage extendable to roughly 35 km² with range extenders

Specifications

• Wireless zones: 18
• Zone types: NO, NC, EOL, 2EOL, 3EOL
• Power lines: 3 (fire and intrusion detectors)
• Zone output: 12 V DC, up to 1 A per zone
• Radio protocol: Jeweller (TDMA, AES encrypted)
• Operating frequency: 868.0–868.6 MHz
• Radio range: Up to 2,000 m in open ground
• Maximum wired distance: Up to 400 m
• Power supply: 100–240 V AC
• Backup battery: 12 V DC, 4 or 7 Ah (sold separately) — up to 4 days
