Ajax DIN Holder for Relay/WallSwitch Bracket — Black
Ajax DIN Holder for Relay/WallSwitch Bracket — Black is backordered and will ship as soon as it is back in stock.

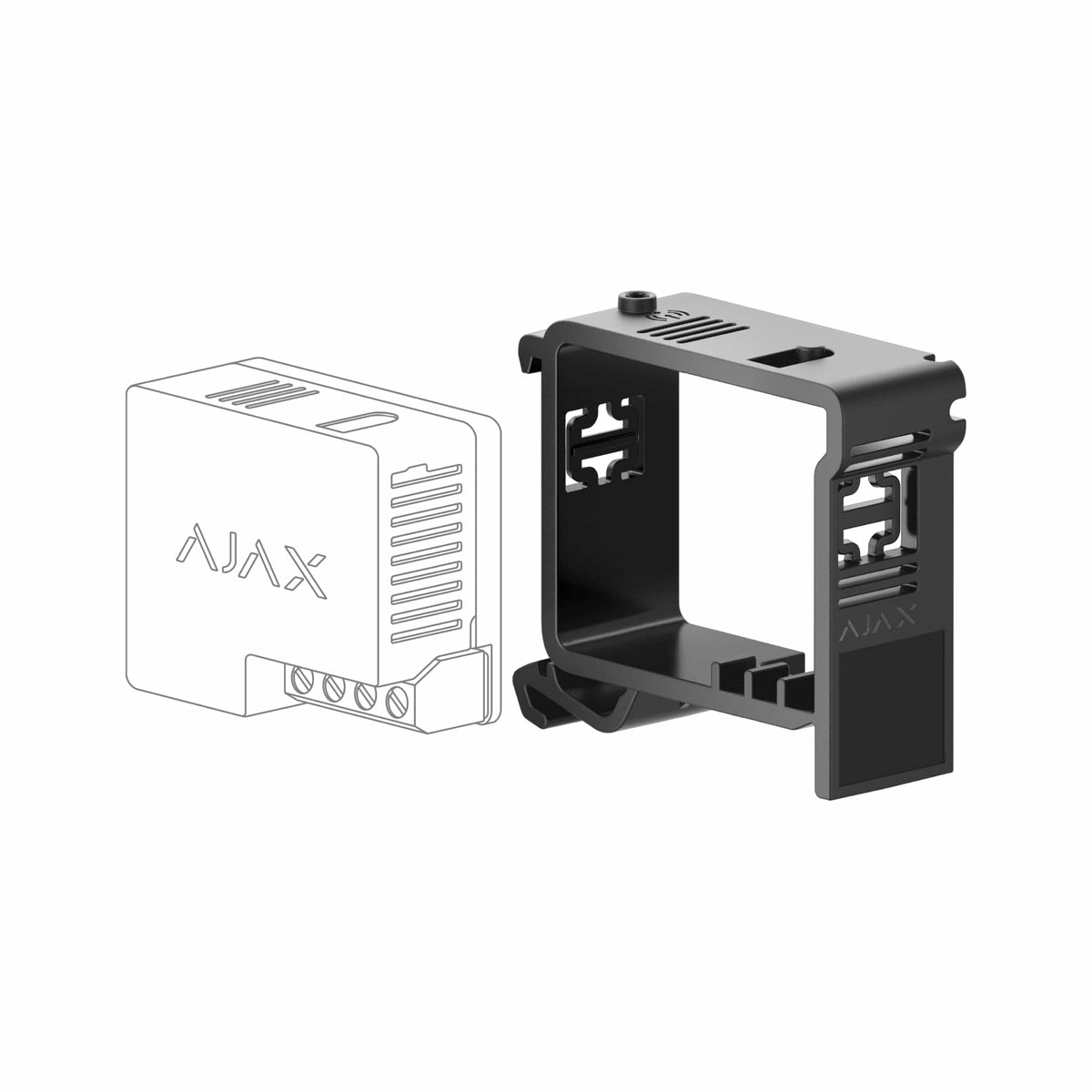

Ajax DIN Holder mounts an Ajax Relay or WallSwitch onto a standard 35 mm DIN rail, so automation modules sit in the switchboard alongside the circuits they control rather than loose in a ceiling space. It suits electricians fitting Ajax automation into a distribution board, junction box or server cabinet.
The holder clips onto the rail by its side hinges with no tools, and passive ventilation slots keep the module from overheating in a crowded panel. A manual control button on the holder switches the relay in bistable or pulse mode without opening the app, and the included sticker set lets you label which circuit each module runs.
Key features
- Mounts an Ajax Relay or WallSwitch on standard 35 mm DIN rail
- Tool-less installation using side hinges
- Passive ventilation to prevent the module overheating
- Built-in manual control button with bistable and pulse modes
- Sticker set included for labelling the controlled device or circuit
- Suits distribution boards, junction boxes and server cabinets
Specifications
- Compatibility: Ajax Relay and WallSwitch
- DIN rail: Standard 35 mm
- Material: Black polycarbonate
- Dimensions: 52 x 41 x 18 mm
- Weight: 9 g
- Maximum operating temperature: +60 C
- Maximum humidity: 75%
- Installation: Side hinges, tool-less
- Included: Sticker set for device identification
-
